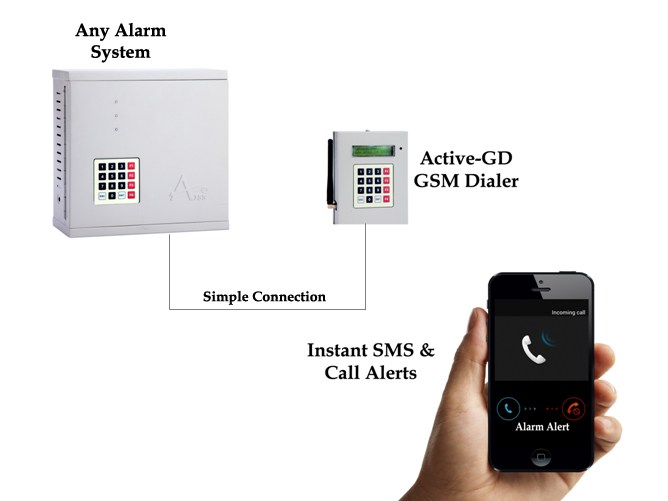

Active GD is a GSM auto-dialer that makes Call and sends users SMS alerts when triggered . It is designed to monitor alarm activity from your phone. The device can send alarm activity to 10 preset mobile phones by Call/SMS.You can record 20 seconds voice message and Text message alerts can be edited as you wish (16 texts).Once the device gets triggered it makes call to the stored numbers ,if call is not attended it sends SMS.Active GD is compatible with all intruder and fire alarm panels and works stand alone with any kind of alarm or control sensor..
2 Trigger Available NO, NC (Normally Open/Close)
16 Texts Sms Option Available
On Board Keypad With 32 Bit Lcd
Arm/Disarm Through Password / Sms
Changeable User Password
Instant Call/Sms Alert For Trigger Open
Individual Voice And Text Message Available For Both Trigger
20 Sec Recording Time For Individual Voice Message
Built In Gsm Modem
Memory Available To Store 10 Phone Numbers
Receives Sms While Arm/Disarm
Arm/Disarm By Sms Can Be Controlled By First Three Admin Numbers
Balance Status Can Be Checked By Sms
Recorded Message Playback Speaker Provision Available
Control Panel Door Tamper Available
External Relay For Trigger Mode And Application Mode
In Application Mode Relay Can Be Operated By Sms
Used For Both Intrusion And Fire Alarm Panel
Micro-Controller Based System
Android Application
Makes instant Call/SMS text message on any kind of detected alarm activity
Compatible with any alarm, contact, relay, sensor Etc.
Remotely control a relay switch through SMS.
Alarm system Notifications
Panic alert system
Power failure warning
Temperature alerting
Door opening, break beam or driveway sensor alerting
Plant or equipment failure or operation complete alerting
Many other applications where a contact output is available.
