Get alerted on your phone if your alarm activates, Works with any type or alarm system, Ideal where no landline exists.

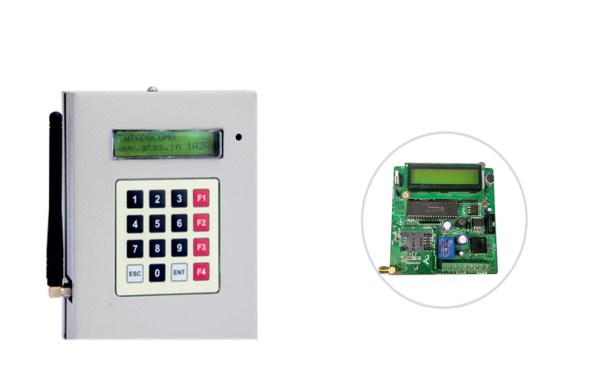

Active GD is a GSM auto-dialer that makes Call and sends users SMS alerts when triggered.
The Active GD GSM Auto dialer can have many uses. Whether cost effectively upgrading any Burglar / fire alarm or other connected equipment to allow GSM Communication and notification of change of state.

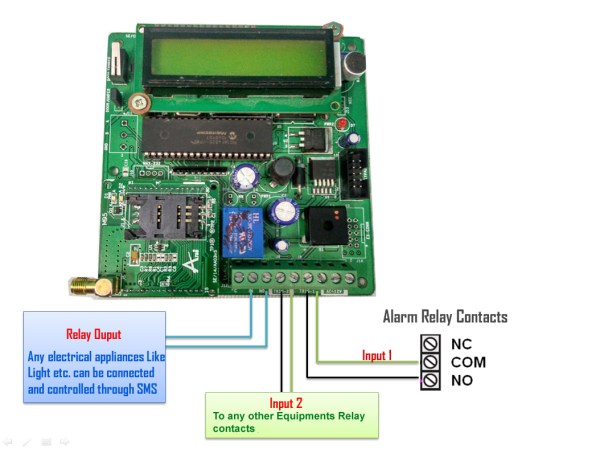

Main features: 2 contact inputs, 1 relay output, Store 10 Phone Numbers, Programmable through on board keypad & LCD display, GSM transmission,signaling over GSM voice call.

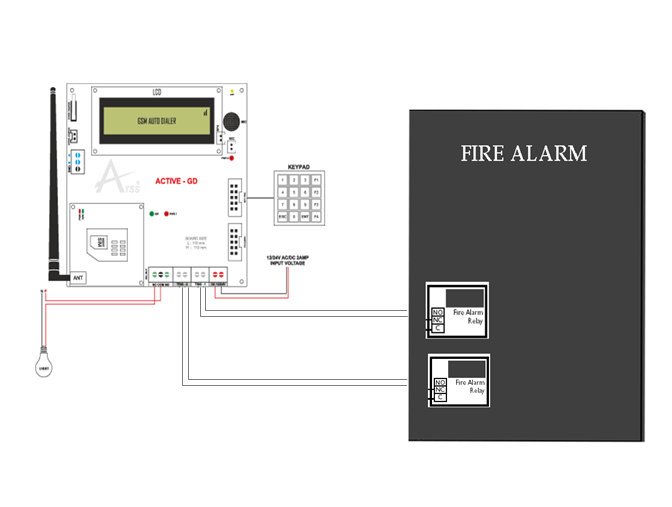

Usually Fire alarm systems consists of relays such as Fire Relay,Fault Relay etc.,these relays gets activated during Fire and Fault event etc.The Active GD has 2 Triggers.

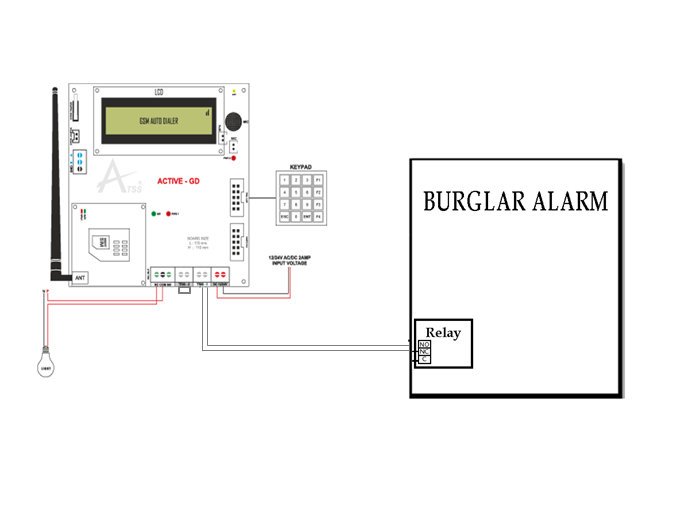

Burglar Alarm Systems consists of Relays which gets activated during an intrusion/event.The Active GD can be connected to these relays.

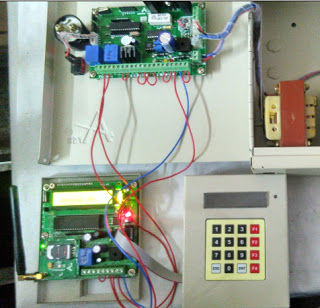

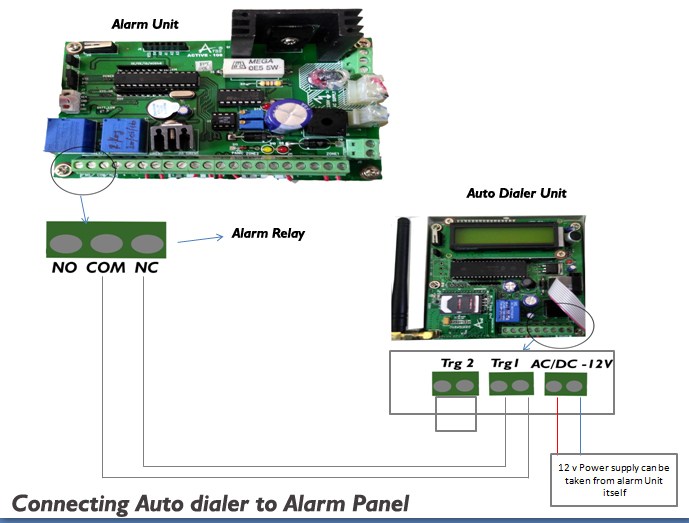

Auto dialers are electronics devices which dials up to stored numbers when it gets triggered,these devices can be connected to the basic burglar alarm systems which doesn’t have facility to send notifications to mobiles .Now Lets See how Auto dialer (Active GD) is connected to Basic Burglar Alarm system (Active 108).
The auto dialer can be placed adjacent to the control panel or within the control panel.It is ideal to place the auto dialer inside the alarm control panel because the auto dialer has to be accessed for programming only occasionally.
